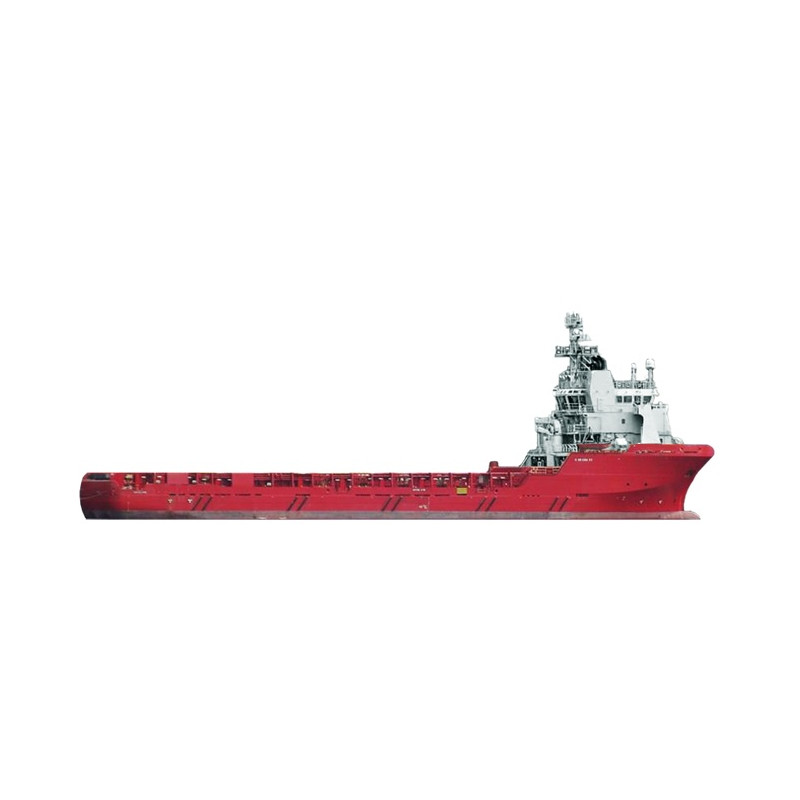

PSV, deck area 1020 m2, DP2, built in 2011

Vessel Specifications

• Type: DP 2 Platform Supply Vessel, 8,046 BHP
• Construction/Year: 2011
• Classification: ABS, A1, Offshore Support Vessel (Supply), AMS, ACCU, DPS-2, ENVIRO, HDC (5 t/m², 1st Deck), HLC (2.8, Brine Tanks, Multipurpose Tanks and Liquid Mud/Oro Tanks), TCM
• LOA: 87.4 m
• Breadth (Moulded): 19 m
• Depth (Moulded): 8 m
• Draft: Max - 6.55 m, Min – 5.20 m
• GRT: 3,665 t
• NRT: 1,582 t
• Deadweight: 5,333 mt
• Main Engines: 2 x 4,023 BHP
• Bow Thrusters: 2 x 1,113 BHP
• Stern Thrusters: 2 x 1,113 BHP
• Propellers: 2 x CPP
• Capstans: 2 x 10 t
• Deck Crane: 1 x 5 t @ 15 m
• Tugger Winch: 2 x 12 t
• Speed & Consumption: Idling / Standby: Abt. 1.5 m³, @ DP / day: Abt. 6 m³, @ 10 Knots / day: Abt. 8 m³, @ 13.5 Knots / day: Abt. 11.5 m³, @ 15 Knots / day: Abt. 14 m³
• Deck Area: 1,020 m² (63.8 m x 16 m)
• Deck Load: 3,210 t
• Deck Strength: 5 t/m²
• Fuel Oil: 1,288 m³
• Potable Water: 1,226 m³
• Drill Water / Ballast: 1,034 m³
• Oil Based Mud: 8,784 bbls @ 100%
• Base Oil: 1,417 bbls @ 100%
• Brine: 11,481 bbls @ 100%
• Dry Bulk: 15,256 ft³ @ 100%
• Recovered Oil: 1,396 m³
• Reefer Points: 8 x 440v & 12 x 240v
• Discharge Rates - Fuel: 2 x 150 m³/hr
• Discharge Rates - Potable Water: 2 x 150 m³/hr
• Discharge Rates - Oil Based Mud: 2 x 75 m³/hr
• Discharge Rates - Brine: 2 x 75 m³/hr
• Discharge Rates - Drill Water: 2 x 150 m³/hr
• Discharge Rates - Base Oil: 1 x 150 m³/hr
• Discharge Rates - Dry Bulk: 2 x 30 m³/hr
• Discharge Rates - Recovered Oil: 1 x 75 m³/hr
• Accommodation: 2 suites + 10 en-suite, 2 x 2-man, 2 x 4-man, 1 x Gym, 1 x Hospital
• GMDSS: A3
• Reference Systems: 2 x DGPS, 1 x Fanbeam, 1 x Radascan
