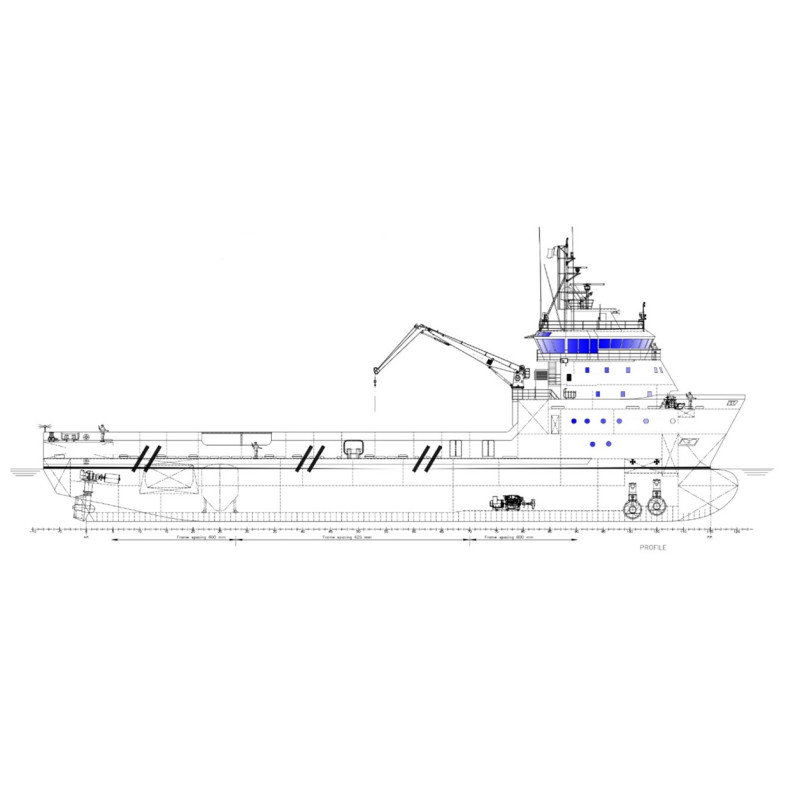

PSV UT755 LN, built 2008 in Europe

Vessel Specifications

• Type: DP 2 Platform Supply Vessel, 6,520 BHP
• Construction/Year: 2008
• Classification: DNV, +1A1, Clean, DK (+), DYNPOS (AUTR), E0, HL(2.5), LFL*, SF, TMON
• LOA: 76.6 m
• Breadth (Moulded): 16 m
• Depth (Moulded): 7 m
• Draft: Max - 5.9 m, Min – 3.9 m
• GRT: 2,304 t
• NRT: 1,143 t
• Deadweight: 3,238 mt
• Main Engines: 2 x 3,260 BHP
• Bow Thrusters: 2 x 1,000 BHP
• Stern Thrusters: 2 x 800 BHP
• Propellers: 2 x CP
• Capstans: 2 x 8 t
• Deck Crane: 1 x 3 t @ 10–16 m (remote)
• Tugger Winch: 2 x 10 t
• Speed & Consumption: Idling / Standby: Abt. 2 m³, @ DP / day: Abt. 8.5 m³, @ 10 Knots / day: Abt. 8.5 m³, @ 13.5 Knots / day: Abt. 12 m³, @ 15 Knots / day: Abt. 20 m³
• Deck Area: 742 m² (55 m x 13.5 m)
• Deck Load: 1,600 t
• Deck Strength: 5 t/m²
• Fuel Oil: 1,195 m³
• Potable Water: 748 m³
• Drill Water / Ballast: 1,135 m³
• Oil Based Mud: 2,498 bbls @ 100% + 3,745 bbls multipurpose tanks
• Base Oil: 1,327 bbls @ 100% + 1,249 bbls multipurpose tanks
• Brine: 2,495 bbls @ 100% + 3,747 bbls multi purpose tanks
• Dry Bulk: 11,124 ft³ @ 100%
• Methanol: 143 m³
• Reefer Points: 5 x 440v, 10 x 110v
• Discharge Rates - Fuel: 1 x 200 m³/hr
• Discharge Rates - Potable Water: 1 x 200 m³/hr
• Discharge Rates - Oil Based Mud: 1 x 75 m³/hr
• Discharge Rates - Brine: 2 x 75 m³/hr
• Discharge Rates - Drill Water: 1 x 150 m³/hr
• Discharge Rates - Base Oil: 1 x 150 m³/hr
• Discharge Rates - Dry Bulk: 2 x 50 m³/hr
• Discharge Rates - Methanol: 2 x 80 m³/hr
• Accommodation: 12 x 1-man, 2 x 2-man, 1 x Gym, 1 x Hospital
• Reference Systems: 2 x DGPS, 1 x Cyscan, 1 x Radascan
• Joystick: 1 x Joystick
• GMDSS: A3
• Tank Capacities:
• Total Volume: Fresh Water: 748 m³, Fuel Oil: 1,195 m³, Brine: 992 m³, Drill Water: 1,135 m³, Mud: 992 m³, Dry Bulk: 315 m³, Base Oil: 409 m³, Water Ballast: 940 m³, Methanol: 143 m³
