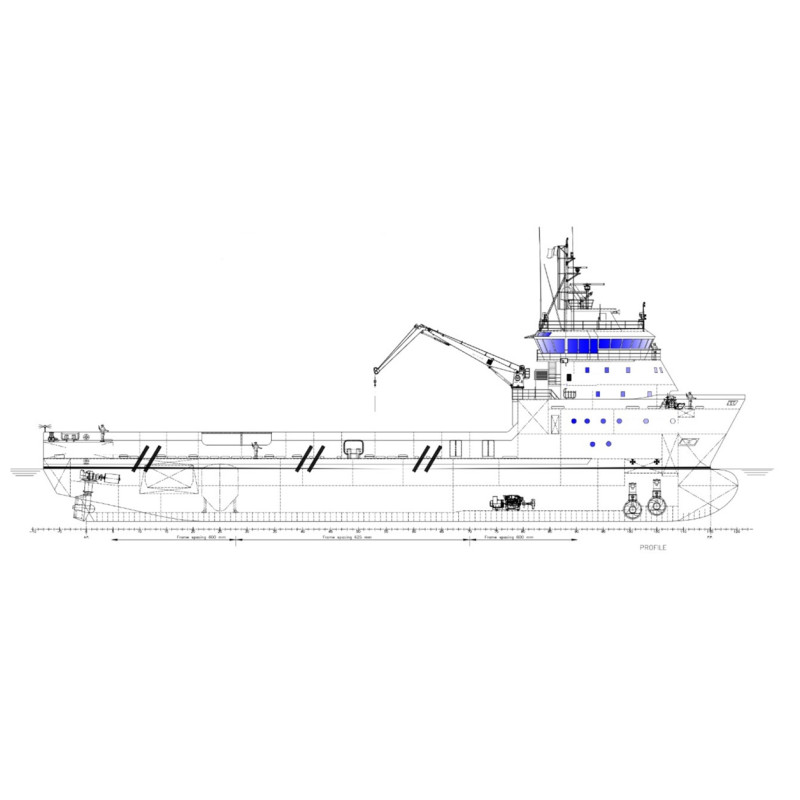

PSV UT 755LC, built 2014 in Europe

Vessel Specifications

• Type: DP 2 Platform Supply Vessel, 7,000 BHP
• Construction/Year: 2014
• Classification: DNV, +1A1, SF, E0, CLEAN, DYNPOS, AUTR, COMF– V(3), DK(+), HL(2.8), OIL REC
• LOA: 76.6 m
• Breadth (Moulded): 16 m
• Depth (Moulded): 7 m
• Draft: Max - 5.9 m, Min – 3.9 m
• GRT: 2,420 t
• NRT: 1,012 t
• Deadweight: 3,150 mt
• Deck Area: 764 m² (56.6 m x 13.5 m)
• Deck Load: 1,550 t
• Deck Strength: 5 t/m²
• Anchor Winch: 2 x 10.6 t
• Capstans: 2 x 5 t @ 15 m
• Tugger Winches: 2 x 10 t
• Provision Crane: 1 x 3 t @ 17 m
• Speed & Consumption: Idling / Standby: Abt. 2 m³, @ DP / day: Abt. 8.5 m³, @ 10 Knots / day: Abt. 8 m³, @ 13.5 Knots / day: Abt. 14 m³, @ 15 Knots / day: Abt. 25 m³
• Fuel Oil: 1,131 m³
• Potable Water: 1,182 m³
• Drill Water / Ballast: 1,484 m³
• Oil Based Mud: 6,243 bbls @ 100%
• Base Oil: 1,258 bbls @ 100%
• Brine: 2,495 bbls @ 100% + 3,748 bbls multi purpose tanks
• Dry Bulk: 11,300 ft³ @ 100%
• Oil Recovery: 990 m³
• Reefer Points: 6 x 230v & 6 x 110v
• Discharge Rates - Fuel: 1 x 200 m³/hr
• Discharge Rates - Potable Water: 1 x 200 m³/hr
• Discharge Rates - Oil Based Mud: 1 x 75 m³/hr
• Discharge Rates - Brine: 1 x 75 m³/hr
• Discharge Rates - Drill Water: 1 x 150 m³/hr
• Discharge Rates - Base Oil: 1 x 150 m³/hr
• Discharge Rates - Dry Bulk: 2 x 22.7 m³/hr
• Propulsion - Diesel Mechanic Propulsion: 2 x 3,500 BHP
• Main Engines: 2 x 3,500 BHP
• Main Generator: 4 x 640 kWe
• Harbour / Emergency Generator: 1 x 99 kW
• Bow Thrusters: 2 x 800 BHP
• Stern Thrusters: 2 x 800 BHP
• Propellers: 2 x RR CPP
• DP System: DP2
• GMDSS: Area A3
• Satellite Communication: VSAT: Data / voice / Internet / Inmarsat-C
• ORO: Yes
• Accommodation: 8 x 1-man, 5 x 2-man, 3 x 4-man, 1 x Gym, 1 x Hospital, Total 48
• Manoeuvring Equipment: Reference Systems - 2 x DGPS, 1 x Cyscan, 1 x Radascan, 1 x Joystick
• Communications Equipment: GMDSS A3, 1 x MF/HF Transmitter/Receiver, 2 x Inmarsat C, 1 x Inmarsat Fleet Broadband 250, 3 x VHF, 4 x UHF (Fixed & Portable), 2 x Tron EPIRB, 2 x Radar Transponders, UK Mobile Phones, VSAT, E-mail, Broadband, GSM
• Navigation Equipment: 2 x Radar - Furuno, 1 x GPS Sat Nav - Furuno, 2 x DGPS Sat Nav - Furuno, 1 x Echo Sounder - Furuno, 1 x Gyro Compass – Sperry, 1 x Autopilot – Anschutz, 1 x Speed Log – Furuno Doppler
• Tank Capacities: (см. таблицу из PDF, но адаптировано в список для простоты)
• Fuel Oil (Tank 1): 133.5 m³
• Drill Water (Tank 2): 133.5 m³
• Fresh Water (Tank 3): 124.4 m³
• Water Ballast (Tank 4): 62.4 m³
• Oil Recovery (Tank 5): 62.4 m³
• Mud (Tank 6): 119.9 m³
• Brine (Tank 7): 140.0 m³
• Base Oil (Tank 8): 86.6 m³
• Dry Bulk (Tank 9): 86.6 m³
• Total Volume: Fuel Oil: 1,131 m³, Drill Water: 1,484 m³, Fresh Water: 1,182 m³, Water Ballast: 1,484 m³, Oil Recovery: 792 m³, Mud: 990 m³, Brine: 990 m³, Base Oil: 200 m³, Dry Bulk: 320 m³
