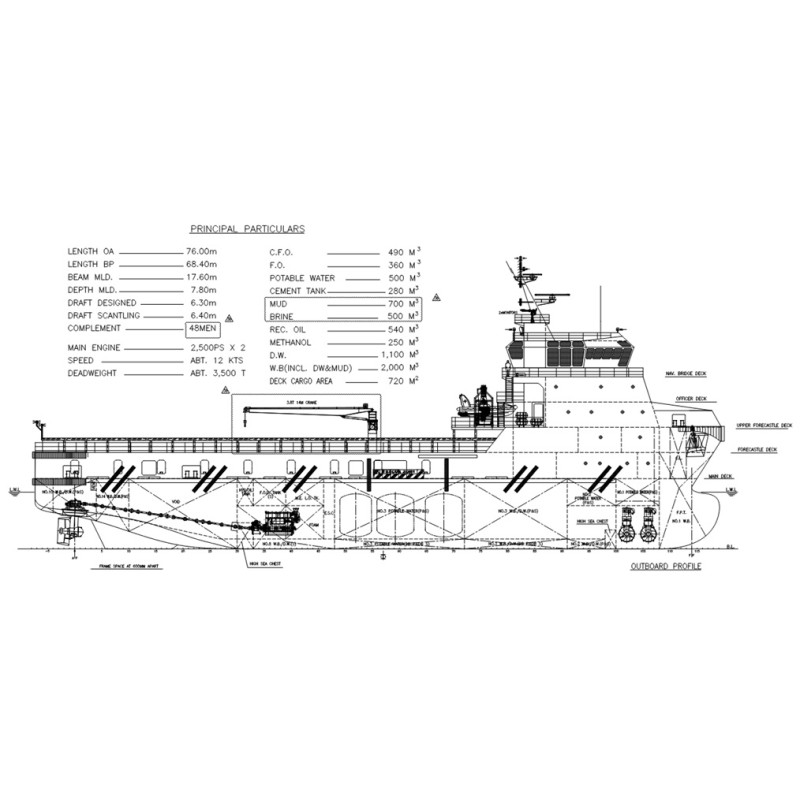

PSV 76m, Deck area 720 m2, built 2013

Vessel Specifications

• Project: 76m PSV
• Construction/Year: 2013
• Class: LR Offshore Support Ship, Fire-Fighting Ship 1 (2,400 m³/h) with water spray, IWS, LMC, UMS, DP(AA)
• LOA: 76.00 m
• Moulded Beam: 17.6 m
• Moulded Depth: 7.8 m
• Maximum Draft: 6.3 m
• DWT: 3,687 t
• GT: 3,451
• Deck Area: 720 m²
• Deck Strength: 7.5 t/m²
• Deck Load: 1,400 t @ VCG 0.8 m above deck
• Anchor Winch: 2 x 10.6 t
• Capstans: 2 x 5 t @ 15 m
• Tugger Winches: 2 x 10 t
• Provision Crane: 3.8 t @ 14 m
• Fresh Water: 503 m³ (100 m³/h @ 80 m head)
• Fuel Oil: 492 m³ (100 m³/h @ 80 m head)
• Brine: 547 m³ (90 m³/h @ 60 m head)
• Methanol: 294 m³ (90 m³/h @ 60 m head)
• Mud: 701 m³ (90 m³/h @ 60 m head)
• Dry Bulk: 280 m³ (100 m³/h @ 80 m head)
• Main Engines: 2 x 2,500 BHP medium speed
• Main Generator: 4 x 640 kWe
• Harbour / Emergency Generator: 1 x 99 kW
• Bow Thrusters: 2 x 570 kW
• Service Speed: 10.0 knots
• DP System: DP2
• GMDSS: Area A3
• Satellite Communication: VSAT: Data / voice / Internet / Inmarsat-C
• ORO: Yes
• Accommodations: 48 total
