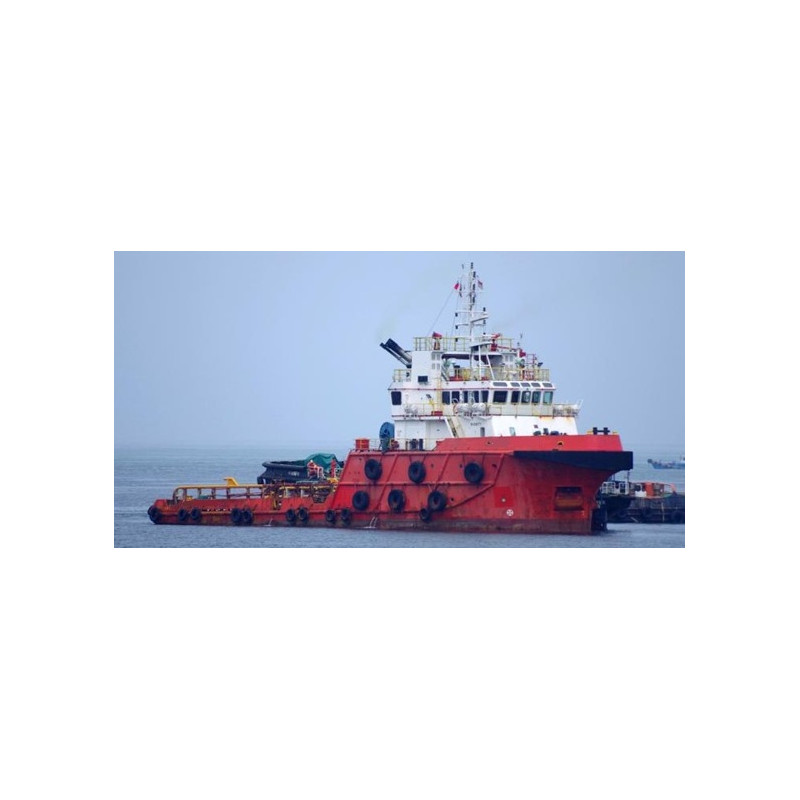

AHT BP 55 T, Built 2007, accomm 30 prs, Location AG

Vessel Specifications

• Type: AHT, BP 55 t
• Built: 2007
• Flag: Singapore
• Class: BV
• LOA: 48 m
• Beam: 13.2 m
• Draft: 4.5 m
• Clear Deck Space: 221.45 m² (21.5 m x 10.3 m)
• Main Engines: 2 x CAT 3516B, 2,357 BHP @ 1,600 rpm
• Bow Thruster: HRP 3001TT, 5 t
• Fuel Oil Tank: 638 m³
• Fresh Water: 196 m³
• Fuel Consumption (With Tow): 11.5 m³/day
• Fuel Consumption (Without Tow): 9.5 m³/day
• Accommodation: 30 persons
• Dynamic Positioning: No DP
• Towing Winch: 1 x electro-hydraulic waterfall double drum type, ME, Drum Pull: 100 MT (1st layer), Brake Holding: 150 MT
• Shark Jaw/Towing Pin: 1 set hydraulic retractable type, SWL 200 t
• Tugger Winch: 2 x electro-hydraulic type, 10 t @ 15 m/min, ME
• Capstan: 2 x electro-hydraulic vertical type, 5 t @ 15 m/min, ME
• Stern Roller: 4.0 m length x 1.8 m dia., SWL 200 t
• Fire Fighting: 600 m³/hr with 2 monitors
