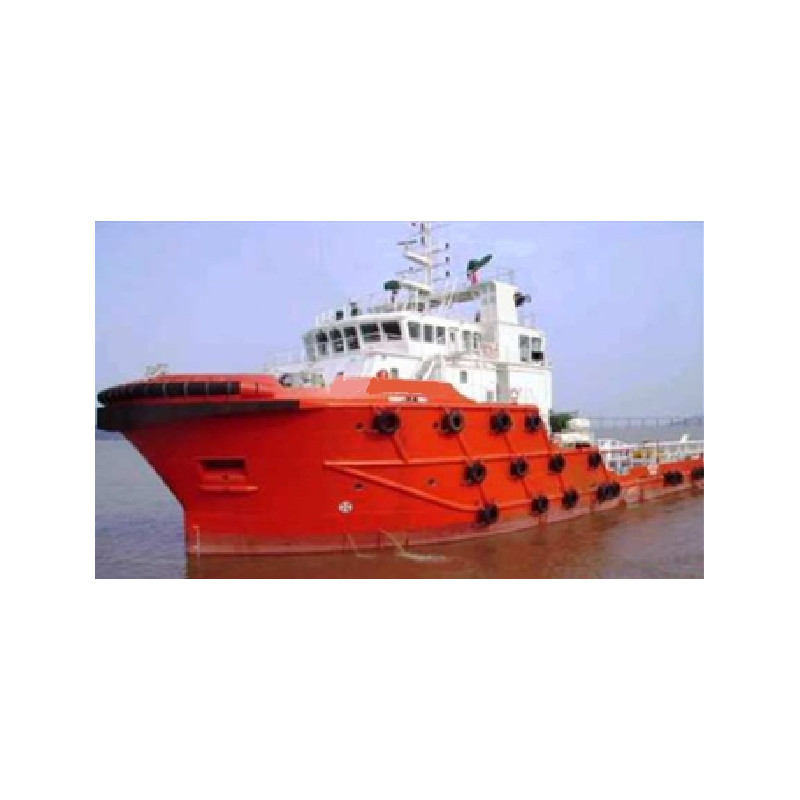

AHTS BP 69 t, built 2007, non DP, accomm 42 prs, location AG

Ref.: OS - 011

Price Upon Request

AHTS BP 69 t, built 2007, non DP, accomm 42 prs, location AG

Get more details

Description

Vessel Specifications

  • Type: AHTS, BP 69 t
  • Built: 2007
  • Class: BV, FiFi1
  • LOA: 59 m
  • Beam: 14.6 m
  • Draft: 4.75 m
  • DWT: 1,500 mt
  • Deck Area: 375 m²
  • Fuel Tanks: 476 m³
  • Main Engines: 2 x Caterpillar 3516 BTA @ 2,575 BHP
  • Thruster: Bow thruster
  • Tow/AH Winch: Double Drum Waterfall Type, Upper Drum – Ø 56 mm x 1,000 m (Towing), Lower Drum – Ø 56 mm x 1,000 m (Anchor Handling), Remote controls from aft control stand in wheelhouse
  • Braking Capacity: 200 MT
  • Stern Roller: Ø 1.6 m x 5.0 m length, SWL 200 MT
  • Shark Jaws: 1 x Karmoy, 300 MT SWL
  • Tow Pins: 1 x electro-hydraulic Karmoy, SWL 160 MT
  • Tugger Winch: 2 x 10 MT @ 15 m/min
  • Rescue Zone: Port & Starboard main deck
  • Fuel Oil Purge Rate: 1 x 150 m³/hr @ 75 m head
  • Fresh Water Pump: 1 x 100 m³/hr @ 75 m head
  • Mud Pump: 2 x 70 m³/hr @ 85 m head
  • Drill Water Pump: 1 x 100 m³/hr @ 75 m head
  • Bulk Cement: 2 x 13 m³/min @ 80 PSI
  • Max Speed: 13.5 knots
  • Accommodation: 42 berths
