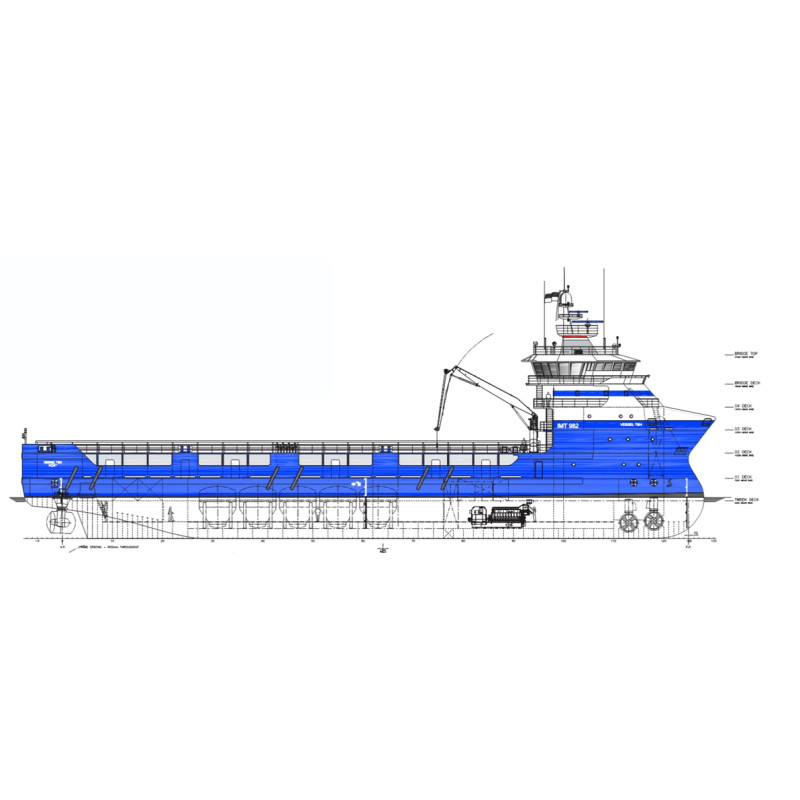

PSV, deck area 902 m2, DP2, Built in 2013 in EU

Vessel Specifications

• Type: DP 2 Platform Supply Vessel, 8,424 BHP
• Construction/Year: 2013
• Classification: Offshore Service Vessel (Supply), DPS(2), E0, HL(2.5), Recyclable
• LOA: 83.22 m
• Breadth (Moulded): 18.0 m
• Depth (Moulded): 7.2 m
• Draft: Max. 5.986 m, Min. 4.35 m
• GRT: 3,104 t
• NRT: 931 t
• Deadweight: 3,996 mt
• Deck Area: 902 m²
• Deck Load: 1,650 t
• Deck Strength: 5 t/m²
• Fuel Oil: 1,188 m³
• Potable Water: 795 m³
• Drill Water / Ballast: 1,717 m³
• Oil Based Mud: 3,672 bbls @ 100%
• Base Oil: 1,066 bbls @ 100%
• Brine: 2,448 bbls @ 100%
• Dry Bulk: 9,340 ft³ @ 100%
• Reefer Points: 12 x 110v
• Main Engines: 4 x 2,106 BHP
• Bow Thrusters: 2 x 1,080 BHP
• Stern Thrusters: 2 x 2,565 BHP (Steerprop Azimuth)
• Propellers: As above
• Capstans: 2 x 10 t
• Deck Crane: 1 x 1.65 t @ 17 m
• Tugger Winch: 2 x 10 t
• Speed & Consumption: Idling / Standby: Abt. 2 m³, @ DP / day: Abt 8.5 m³, @ 10 Knots / day: Abt. 8.5 m³, @ 13.5 Knots / day: Abt. 12 m³, @ 15 Knots / day: Abt. 20 m³
• Discharge Rates - Fuel: 1 x 200 m³/hr
• Discharge Rates - Potable Water: 2 x 200 m³/hr
• Discharge Rates - Oil Based Mud: 2 x 75 m³/hr
• Discharge Rates - Brine: 2 x 75 m³/hr
• Discharge Rates - Drill Water: 1 x 150 m³/hr
• Discharge Rates - Base Oil: 1 x 75 m³/hr
• Discharge Rates - Dry Bulk: 2 x 50 m³/hr
• Accommodation: 13 x 1-man, 2 x 2-man, 1 x Hospital
• GMDSS: A3
• DP System: DP2
• Reference Systems: 2 x DGPS, 1 x Cyscan, 1 x Radascan
• Joystick: 1 x Joystick
